IMPAKTOR 850
Evolution of Recycling

IMPAKTOR 850

With the Impaktor 850 we have developed an extremely powerful machine that was specially designed for demanding shredding tasks. Equipped with a CAT C9 engine with 340 kW output and a generous hopper volume of up to 8 cubic meters (including tilting hopper), the Impaktor 850 enables efficient material processing. Another outstanding feature is the discharge belt’s discharge height of 4,500 mm, which creates optimal conditions for downstream logistics. With impressive performance and high flexibility, the machine also impresses with its user-friendly handling. As standard, it is equipped with a screen basket that can be easily and quickly replaced, allowing flexible adjustment of the fraction size. This ensures that the Impaktor 850 is always optimally adjusted to the respective material and offers maximum efficiency.

ZERKLEINERUNGSEINHEIT
Großvolumiger Aufnahmetrichter
und Zweiwellen-System
inkl. optimierter
Schnellwechselkassette

KETTENLAUFWERK
Serienmäßig! Garantiert hohe
Manövrierfähigkeit auch auf
unwegsamen Gelände. Mit
hydraulisch federnden Buggy-
System

ABDECKHAUBE
Ideale Zugänglichkeit der An-
triebseinheit durch hydraulisches
öffnen der Haube für Service-,
Wartungs- und Reinigungsarbei-
ten. Extrem Leise (87dba) durch
neu entwickeltes Ansaugsystem.

ÜBERBANDMAGNET
Serienmäßig! Höhenverstellbarer
Permanentmagnet für effiziente
Fe-Abscheidung.

ANTRIEB
 Leistungsstarker CAT C9
Dieselmotor mit 340 kW
Leistung für geringen
Verbrauch bei höchster
Effizienz

We have learned a lot from past experience and have consistently integrated these findings into the development of our new mid-range machine. Just like with the Impaktor 1250 Hybrid in the luxury class, we have analyzed the most common problems and developed solutions. The air circulation now takes place from the inside to the outside: the cool air flows through a fine pre-filter into the interior, is directed specifically over the engine and the attachments and then efficiently discharged again as warm air. This supplies all components with fresh air, which prevents overheating. The interior of the machine is very cool at all times.

Our long-standing employees, head of design Adrian Scholl and “pioneer of two-shaft technology” Norbert Hammel, have taken valuable practical experience and knowledge from the earlier models of the VZ, VB and Titan series into account. All the strengths and proven advantages of these machines have been combined in the new Impaktor 850, resulting in a powerful and optimized solution. This feedback and the lessons learned from it have made a decisive contribution to ensuring that the new machine operates at a completely new level in terms of efficiency and reliability.

Standing still is going backwards!

“Those who blindly rely on tried and tested methods miss out on progress. Because real innovations do not come from clinging to the old, but from having the courage to change. We question existing systems, optimize them and set new standards. Change is the engine of success – for everyone who wants more than just ‘keeping going’.
Norbert Hammel
In our previous models, hard-to-reach corners and edges in the engine compartments often led to dirt and massive cooling problems because dirt and deposits would build up there. In the new machine, this problem has been solved by a smooth floor surface and effective pre-filtering of the air, whereby the collected dirt is simply blown outwards by the reversible fan. This eliminates the previously necessary ventilation grilles and slots, which keeps the machine much cleaner and very quiet and significantly reduces maintenance effort compared to previous models.”

Norbert Hammel

A special highlight is the flexible combination option: the magnet that is installed as standard on the machine can be used for transverse or longitudinal discharge. There is also the option of a transverse belt for non-ferrous materials. These versatile configuration options offer maximum adaptability for different applications.

Throughput:

  • Commercial waste ⌀ 15 - 32 t/h
  • Trunk wood and roots ⌀ 19 - 39 t/h
  • Green cuttings ⌀ 45 - 90 t/h
  • Rubber and old tires ⌀ 9 - 19 t/h
  • Old wood ⌀ 26 - 52 t/h
  • Papier und Kartonagen ⌀ 19 - 39 t/h
The performance data given are average values ​​without guarantee! The actual values ​​depend on the equipment of the shredder, the shaft configuration, the position of the counter rakes and the optimal material feed.
Broschure 850 (EN)
Send request
Dimensions
Version
Track system
Length (mm)
12.000 / 9.250 (Transport)
Width (mm)
2.450 / 2.450 (Transport)
Height (mm)
4.300 / 3.200 (Transport)
Weight (kg)
24.000
DRIVE EU
Engine
CAT C9
Emission standard
Stufe V
Power (kW / HP)
340 / 460
Fuel capacity (l)
1.080
Gearbox
Bonfiglioli
Discharge Belt
Discharge height (mm)
4.500
Width (mm)
1.200
Inclusive
Overband magnet
Shredding unit
Hopper volume (m³)
8,00
Shaft length (mm)
2.200
Shaft diameter (mm)
680
Weight (kg / cassette)
3.500
Rotation speed (U / min)
24 - 64
299.000,- €

Focus on outstanding features of the Impaktor 850

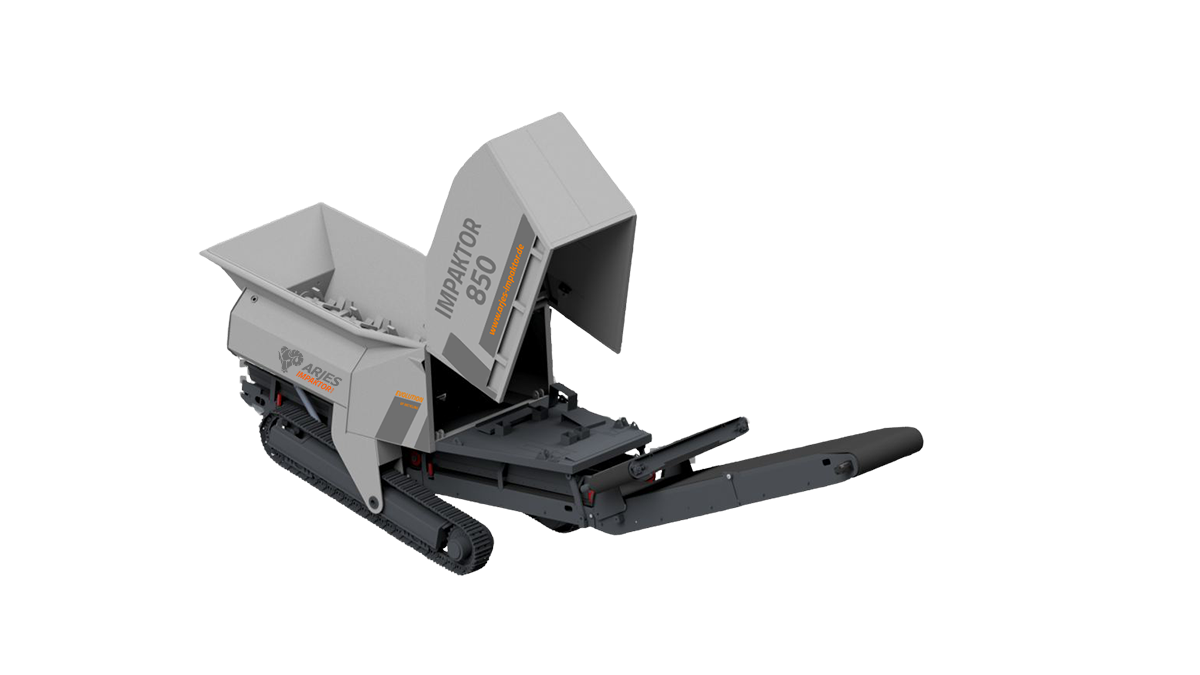

Covering Hood

Ideal accessibility of the drive unit through hydraulic opening of the hood for service, maintenance and cleaning work. Extremely quiet - 80db(A) - thanks to the newly developed intake system. The air sucked in is directed through a fine filter over the engine, hydraulic and electrical components and then discharged to the outside.
80 db(A)

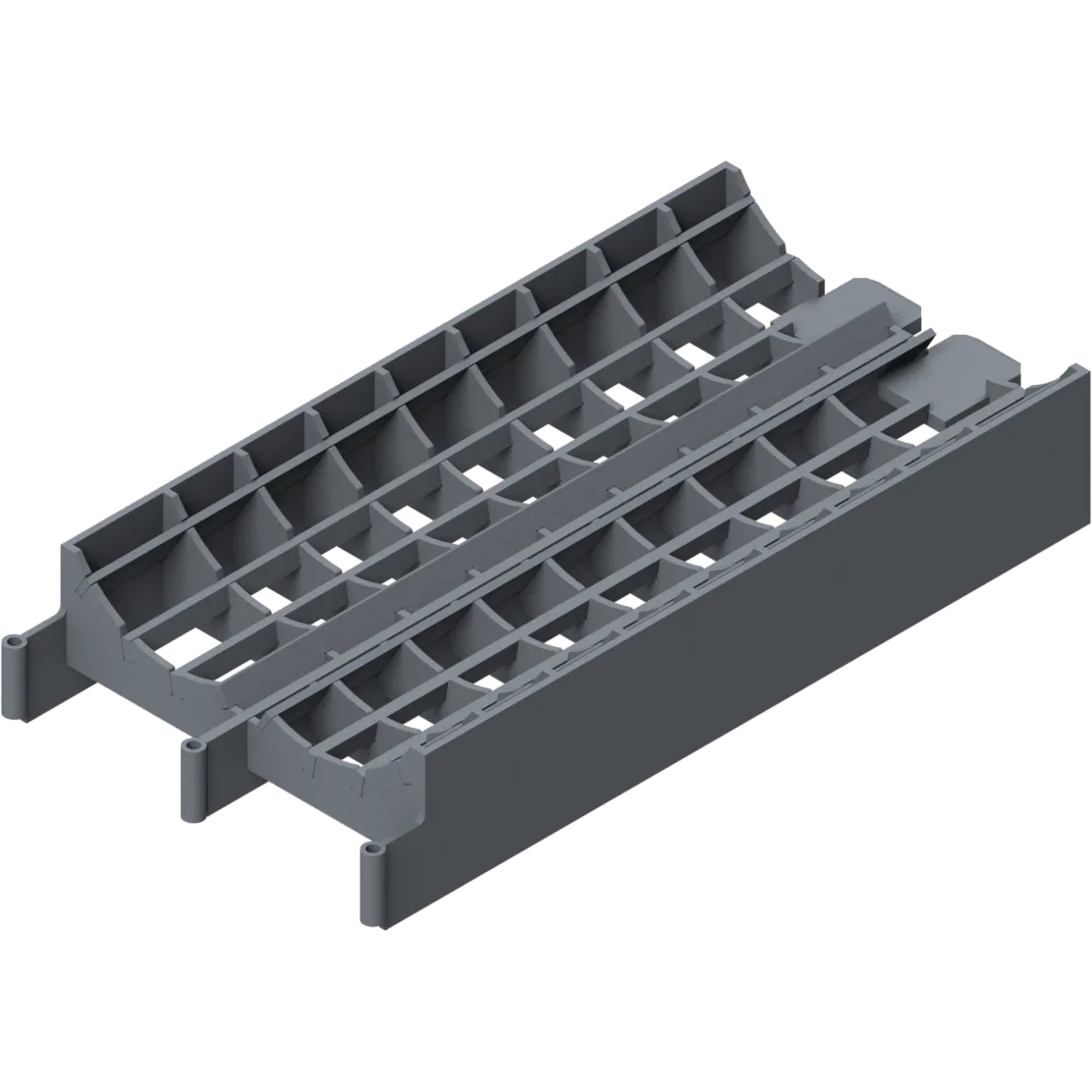

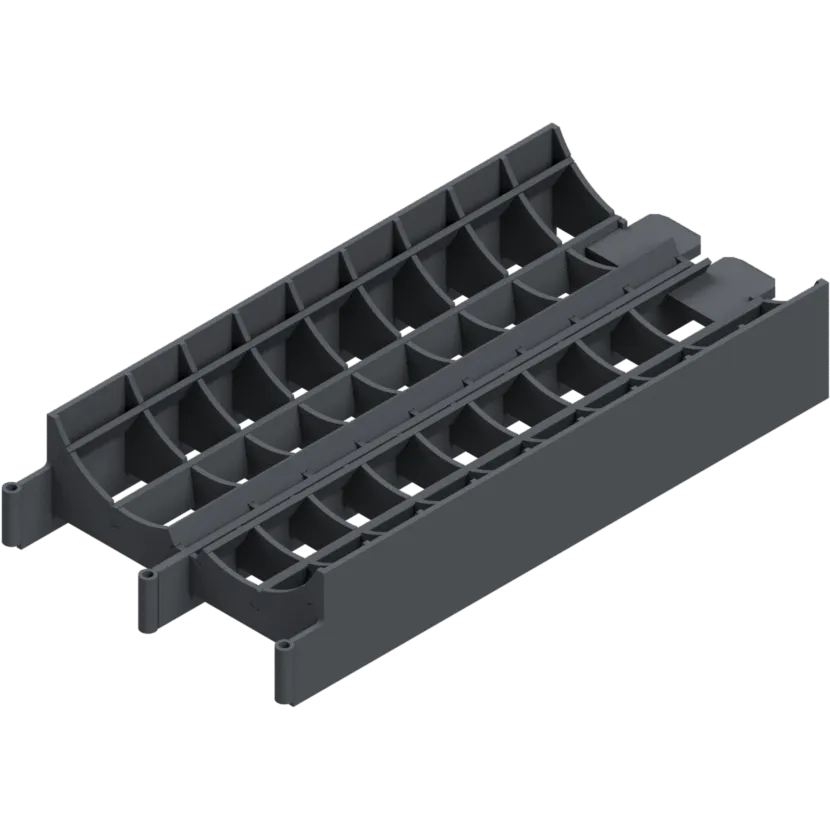

STRAINER BASket

The screen basket forms a unit with the substructure and is firmly connected to the conveyor system. For maintenance work, this entire module can be easily and quickly pushed out as soon as the superstructure is tilted backwards. This makes access for service, cleaning and replacement particularly convenient and efficient. This solution not only saves time, but also minimizes downtime and makes machine maintenance much easier. The counter bars can be changed by hand and without tools.

Working position
with cross magnet on the discharge belt

In the working position, the superstructure is tilted forward and moved hydraulically into the working position. The screen basket is located under the shredding shafts. In this position, the discharge height of the discharge belt is 4,500 mm. The discharge belt is adjustable from 1,000 mm - 4,500 mm.

Working position
Longitudinal magnet with cross band

The cross belt magnet is a key component used in many shredding machines to efficiently remove ferrous metals from the material stream. Unique to mobile machines

Service position

The upper structure of the machine can be tilted backwards, while the substructure, which is firmly connected to the chassis, allows the screen basket to be easily moved out on a rail in this position - without having to dismantle the shafts. The entire cover can be raised hydraulically for servicing the drive unit.

Transport position

For transport, the superstructure is lowered hydraulically. The discharge belt can be lowered and tilted to ensure a compact transport position. Transport dimensions:
Height: 3.200 mm
Width: 2.200 mm
Length: 9.250 mm

Areas of application of the Impaktor 850

Household &
commercial waste

Waste wood &
Biomass

NEW

Rubber &
old tires

Paper &
cardboard

Available Shafts

Customize your Impaktor 850 with different shafts to suit your needs!

Star Shafts

4-piece

Star Shafts

6-piece
