Arjes Impaktor GmbH
IMPAKTOR 1000
Evolution of Recycling

IMPAKTOR 1000

With the Impaktor 1000, we’re entering a new dimension of shredding – powerful, efficient, and thought through down to the smallest detail. After the Impaktor 1250 and Impaktor 850 impressively demonstrated their capabilities, and the Impaktor 750 is ready to launch, it was time to raise the bar even higher. Because, as the saying goes, “The impossible gets done instantly, miracles take a little longer.” Here’s our next miracle!

DRIVE
Powerful CAT C13
diesel engine with
400 kW power for
low consumption
and maximum efficiency

GEARBOX
Optional! New flexibility
through the choice between
synchronous and
asynchronous gears.
Evaluate T-shafts and
Hammel shafts

COVERING HODD
Ideal accessibility to the
drive unit due to hydraulic
opening of the hood for
service, maintenance and
cleaning work. Extremely
quiet (80dba) trough a newly
developed intake system.

SHREDDING UNIT
Large-volume hopper and
two-shaft system incl.
optimised
quick-change cassette

.

MAGNET
Included! Height adjustable
overband magnet for effective
FE-seperation

.

The Impaktor 1000 combines power with precision and sets new standards in efficiency. Similar to its little brother, the Impaktor 850, it impresses with its quiet yet high-performance operation. Noise is a thing of the past – the Impaktor 1000 proves that extreme shredding power doesn’t have to be loud. Its powerful shafts enable reliable and flexible processing of a wide variety of materials. Changing shafts is quick and easy, allowing the machine to be effortlessly adapted to changing requirements.

A special feature of the Impaktor 1000 is the quick opening and closing of the hood, allowing maintenance work or adjustments to the machine to be carried out with minimal effort. The reversible fan, already proven in the Impaktor 850, has been further optimized and now ensures even better cooling and efficiency during operation. Cleaning of the interior has also been further improved, allowing material residues to be removed more quickly and the machine to be ready for use again quickly.

With its newly developed tangential plate tool, the Impaktor 1000 sets new standards in shredding technology. This innovation contributes to even more efficient material processing and further increases throughput. At the same time, the machine remains low-maintenance and reliable in continuous operation. The enclosed conveyor belts minimize maintenance requirements, while the intelligent magnetic system – both longitudinal and transverse – ensures effective material separation and thus enables maximum material yield.

The Impaktor 1000 is the result of years of experience and intensive collaboration with field experts. Proven technology and innovative innovations merge to create a machine that knows no compromises. With it, users are ideally equipped for the challenges of the future and can rely on a reliable, powerful, and adaptable solution for their shredding tasks.

Throughput:

The stated performance data are average values ​​without guarantee! Actual values ​​depend on the shredder’s equipment, shaft configuration, counter-rake position, and optimal material feed.

Images are similar. Sold ex works in Leimbach. All prices exclude VAT, additional costs, and optional extras. Subject to technical changes, errors, and misprints.

Dimensions
Version
Track system
Length (mm)
14.000 / 11.449 (Transport)
Width (mm)
2.971 / 2.971 (Transport)
Height (mm)
4.500 / 3.520 (Transport)
Weight (kg)
36.000
DRIVE EU
Engine
CAT C13
Emission standard
EU Stufe V
Power (kW / PS)
400 / 544
Fuel capacity (l)
1.050
Gearbox
Bonfiglioli

*Rest of the world (country-specific requirements)

Discharge Belt
Discharge height (mm)
4.500
Width (mm)
1.400
Inclusive
Overbelt magnet
Shredding UNit
Hopper Volume (m³)
10,00
Shaft length (mm)
2.500
Shaft diameter (mm)
840
Weight (kg / Kassette)
6.800
Rotation speed (U / min)
18 -52
All information is provided without guarantee. Technical specifications are subject to change without notice. Errors and omissions excepted. Please contact our sales team for binding data or specific transport drawings.

Our shredder in action

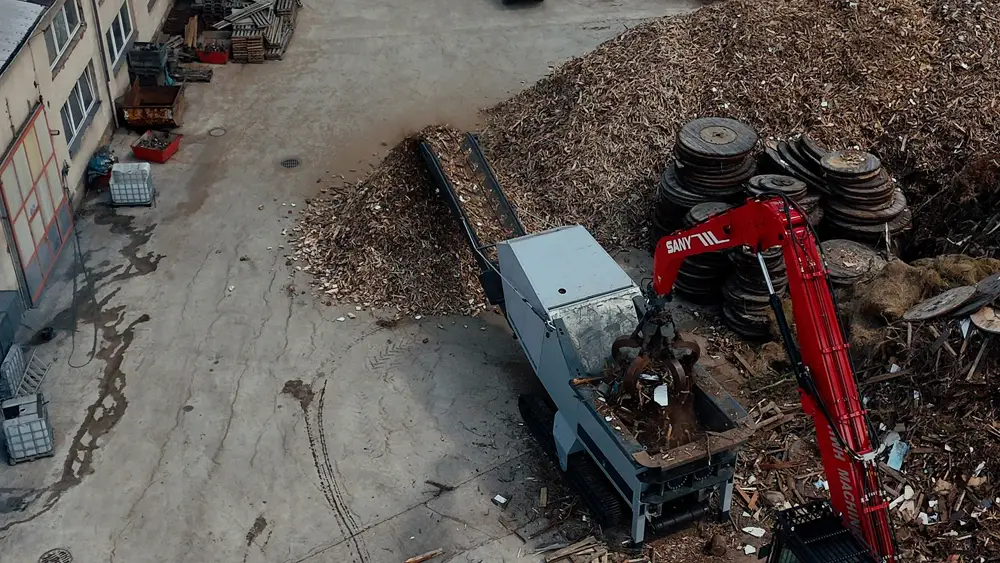

The IMPAKTOR 1000 shows its strengths where uncompromising performance is required: when shredding construction waste, scrap metal, rubber or mixed waste – directly in the harsh everyday life of recycling plants or demanding construction sites. Thanks to the powerful twin-shaft system with quick-change system, shafts and screen baskets can be replaced particularly easily, allowing flexible material changes without long downtimes. The intelligent combination of high throughput, reliable metal separation and a particularly service-friendly design makes the IMPAKTOR 1000 a reliable solution for continuous operation. The machine works surprisingly quietly – at only around 80 dB(A) – and always remains cool and ready for use thanks to the optimized air intake system.

See the efficiency and versatility of the IMPAKTOR 1000 for yourself – in daily use by professionals throughout Europe.

Available shafts

Customize your impactor with different shafts to suit your needs!

Tangential shafts

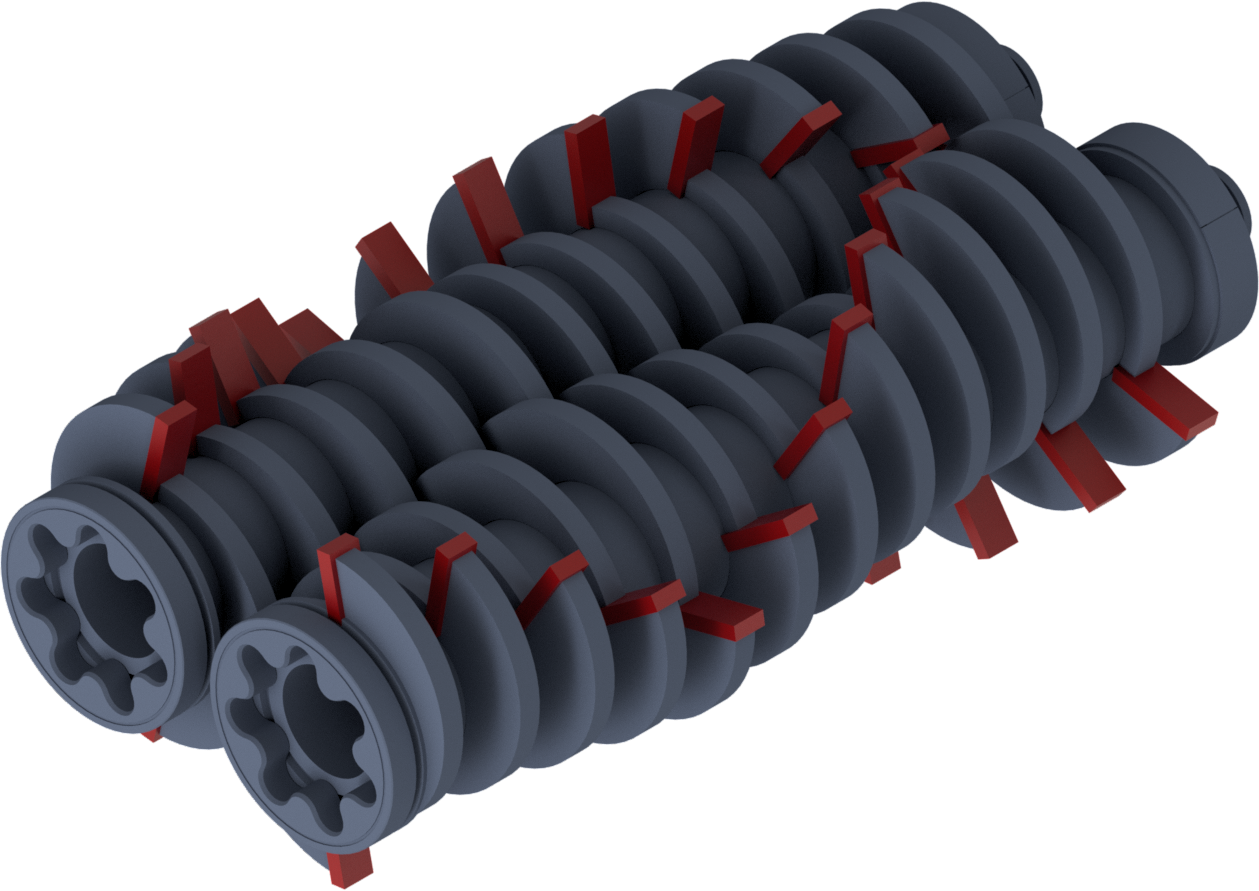

Concrete shafts

Star shafts

Machine power in a real environment

Our technology in action – serving recycling worldwide

EXPERIENCE ARJES IMPAKTOR LIVE

passe deinen IMpaktor an

Unsere Erweiterungen für deinen Einsatzbereich

Welche Erweiterungen brauchst du

Erweiterungen

Dank einer breiten Palette optionaler Anbaugeräte lässt sich der IMPAKTOR 350 EVO II noch präziser auf spezifische Anforderungen und Materialien abstimmen. Ob für die Feinabtrennung, die gezielte Fraktionierung oder zur Steigerung der Sortierqualität – die Zusatzkomponenten erweitern den Funktionsumfang des kompakten Zweiwellenzerkleinerers erheblich und gewährleisten eine noch effizientere Materialrückgewinnung.

Besonders hervorzuheben sind die optionalen Überbandmagnete, die zur Abtrennung von Eisenmetallen aus dem Materialstrom dienen – wahlweise in Längs- oder Queranordnung, je nach räumlicher Situation und Materialfluss. Für die granulometrische Trennung stehen diverse Siebtechniklösungen zur Verfügung, darunter Scheibensiebe, Fingersiebe, Stollenbandförderer sowie der klassische Siebkorb. Diese ermöglichen eine gezielte Klassifizierung in unterschiedliche Fraktionen und verbessern die Qualität des Endprodukts signifikant.

Die schnelle und werkzeuglose Integration von Anbaugeräten spielt eine zentrale Rolle – insbesondere beim IMPAKTOR 350 EVO II, der für den flexiblen Einsatz auf Baustellen und in Recyclingbetrieben konzipiert wurde. Die Auswahl des passenden Zubehörs richtet sich nach dem zu verarbeitenden Material, der angestrebten Zielkorngröße sowie den jeweiligen Einsatzbedingungen.

Mit dem richtigen Zubehör entwickelt sich der IMPAKTOR 350 EVO II zu einem perfekt abgestimmten System – leistungsstark, vielseitig und zukunftssicher für jede Herausforderung in der mobilen und stationären Zerkleinerungstechnik.

Overbelt Magnet

Well suited for garbage & wood
Magnetic separation in lengthwise direction

Disc Screen Biomass

Perfect for topsoil and compost

Disc Screen Wood

More efficient separation of wood and tires

Cascade Screen

Sieve out minerals
Different sieve variants available

Band extension

Increased drop height to 4,500 mm instead of 3,200 mm.
Well suited for directly loading downstream equipment.

Leistung

Welche überzeugt!

Technische Leistung die sich auszahlt

Dimensions
Version
Track system and hook lift
Length (mm)
7.700 / 7.300 (Transport)
Width (mm)
2.300 / 2.300 (Transport)
Height (mm)
3.900 / 2.550 (Transport)
Total weight (kg)
13.400
Drive EU
Engine (Volvo Penta)
TAD 583 VE
Emission standard
EU Stufe V
Power (kW / HP)
175 / 238
Fuel capacity (l)
300
Gearbox
Bonfiglioli

*Rest of the world (country-specific requirements)
