IMPAKTOR 1250 D
The Impaktor 1250 Hybrid is a powerful shredder designed for demanding use in the recycling and shredding industry. With its particularly robust design and high performance, it is able to efficiently shred a variety of materials, including metal scrap & car bodies, construction & demolition waste, used tires & rubber, domestic & commercial waste, etc.
HIGH INPUT FUNNEL
One-piece side walls
that are hydraulically
damped and give way
if the material is too
coarse. Can be changed
without tools.
SHREDDING UNIT
Large-volume hopper
and two shaft system
with quick change
cassette
TRACK SYSTEM
Included! Guaranteed
high mobility on uneven
surfaces
COVERING HOOD
Ideal accessibility to
the drive unit thanks
to hydraulic opening of
the hood for service,
maintenance and
cleaning work.
Extremely quiet (87dba)
thanks to newly
developed intake system.
CONVEYOR SYSTEM
Easy to dismantle by
attaching and detaching.
Optionally with vibrating
chute plus discharge belt
or with belt table with
ascending belt
DRIVE
Powerful diesel engine.
The drive unit is
replaceable. Can be
changed easily by
simply unhooking and
hooking in. Separate
transportation is also
possible.
The Impaktor 1250 D is characterized by its user-friendliness and ease of operation, making it an ideal solution for companies and organizations that value efficient and sustainable recycling. With its focus on environmental friendliness and sustainability, the Impaktor 1250 D offers an efficient and reliable solution for processing and recycling materials.
Troughput rates:
- Construction waste ⌀ 180 - 200 t/h
- Concrete / Asphalt ⌀ 140 - 160 t/h
- Waste wood ⌀ 100 - 150 t/h
- Biomass ⌀ 150 - 200 t/h
- Waste & Plastics ⌀ 40 - 50 t/h
- Car bodies 25 - 30 t/h
- Mixed scrap ⌀ 25 - 30 t/h
| DIMENSIONS | |
|---|---|
|
Version |
Track system |
|
Length (mm) |
7.600 (Transport) |
|
Width (mm) |
3.000 (Transport) |
|
Height (mm) |
3.400 (Transport) |
|
Weight (kg) |
37.000 / 33.000 (Transport) |
| Drive | EU | ||
|---|---|---|---|
|
Engine |
VOLVO TAD 1683 VE |
||
|
Emission standard |
EU Stufe V |
||
|
Power (kW / PS) |
585 / 795 |
||
|
Fuel capacity (l) |
1.500 |
||
|
Gearbox |
Bonfiglioli |
||
*Rest of the world (country-specific requirements)
| DISCHARGE BELT | |
|---|---|
|
Discharge height (mm) |
variable |
|
Width (mm) |
1.400 |
| Shredding unit | |
|---|---|
|
Hopper volume (m³) |
15 |
|
Shaft length (mm) |
2.500 |
|
Shaft diameter (mm) |
840 |
|
Weight (kg / cassette) |
7.000 |
|
Rotation speed (U / min) |
15 – 45 |
Focus on outstanding properties
Reduced transport and working height
Good loading options thanks to the easy dismantling of the hopper walls (without tools), the discharge belt and the transport position of the chipping device.
Revised quick-change cassette
Easy installation and removal of the shaft pair within a very short time, easy maintenance, reconditioning and changing of the shaft type for uninterrupted operation.
Hydraulically dampened counter rakes
Hydraulically dampened side walls made from one piece enable very good material sliding properties and thus counteract material blockages.
Our shredders in action
Application
Construction &
demolition waste
Scrap metal &
car bodies
Construction &
demolition waste
Rubber &
old tires
Available shafts
Customize your impactor to your needs with different shafts!

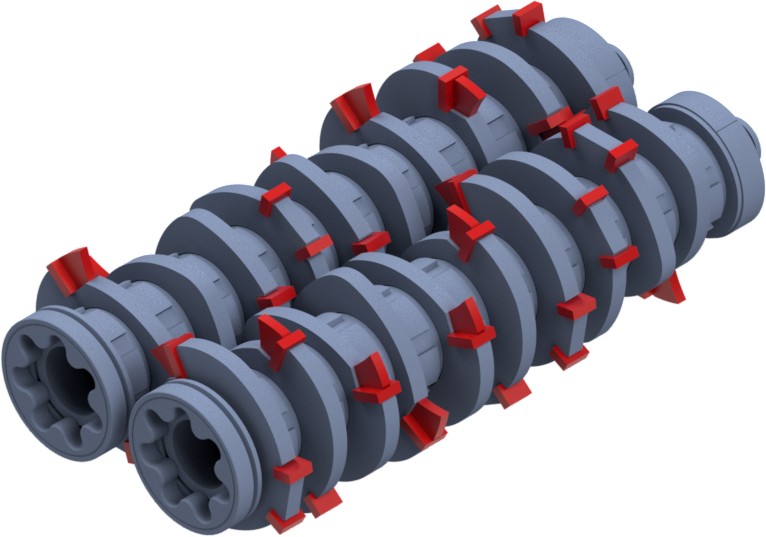

Metal shafts
8-piece
Metal shafts
10-piece
